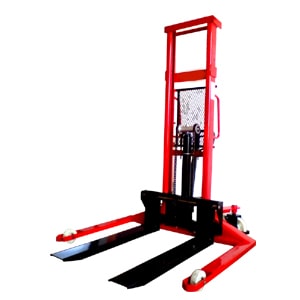

| MANUAL STACKER – WINCH (SPECIFICATION) | ||
| Discription | Unit | EMS 0516 |
| Capacity | Kg | 500 |
| Max. Lift Height | mm | 1400 |
| Mast Height | mm | 1950 |
| Length of Fork | mm | 800 |
| Max. fork Width | mm | 570/adjustable(250-800) |
| Cylinder Dia | mm | 65 |
| Cylinder Stroke | mm | 800 |
| Min Fork Height | mm | 85-90 |
| Load Wheel (Single) | mm | 80×70 |
| Steering Wheel | mm | 180×50 |
| Turning Radius | mm | 1080 |
| Material of Wheel | mm | Nylon/PU |
| Ovarall Weight | kg | 200 |
Operated by a manual hand winch and a steel wire which gives an accurate and fast lift/lowering function. The automatic brake system ensures a safe lowering. 4 castor wheels. Attachment options for roll available. The winch stacker has a very low weight compared to the rated lift capacity. Makes it very handy and easy to use for the operator. It is equipped with adjustable forks for half size pallets. Hand winch for lifting and lowering. Large sized rubber rear wheels and small front PU castor wheels, hand controlled foot brake.
