Most standard and popular model with capacity 1000/1500 kgs.
- Hand brake / drive hand pallet truck
- Easy 3 position control handle– Raise, Lower, Neutral.
- Structural heavy duty steel construction.
- Powder coated structure and Integrated welded pump.
- Fork lowering speed is controllable, operated by hand control.
- Polyurethane wheels fitted as standard complete with break.
- Its Reduce time lost to personnel injuries and help increase your facility’s productivity.
Wheels: Nylon wheel, Rubber wheel, Polyurethane wheel, Steel wheel

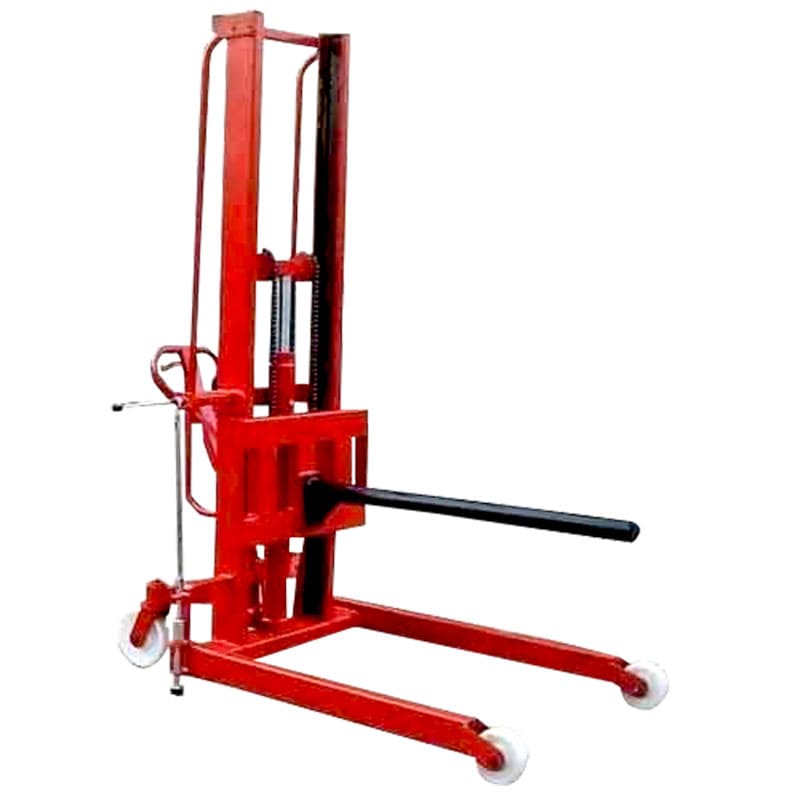

| MANUAL ROLL HANDLER (ROD TYPE) – SPECIFICATION | |||
| Description | Unit | EMRH-1016R | EMRH-1030R |
| Max Capacity* | Kg | Up to 1000 | |
| Overall Dimensions (LXWXH) | mm | 1850 x 950 x 2050 | |
| Min. Rod height | mm | 250 | |
| Max. Rod height | mm | 1750 | |
| Length of Seamless Rod | mm | 1250/1500 | |
| Seamless Rod Outer Dia | mm | 60/65 | |
| Load center | mm | 600 | |
| Structure | Std. | Mild Steel | |
| Load Wheels | mm | ø 80×70 / ø 180×50 | |
| Steering Wheels | mm | ø 180×50 | |
| Turning Radius | mm | ~1650 | |
| Overall weight | mm | 170 | 190 |
