Feature:
- Easy 3 position control handle– Raise, Lower, Neutral.
- Pipe stacker lifts the weights with a manual or pedal hydraulic device and loads weights with manual pull and push at a low position.
- Manual stacker speed is controlled by using the pedal and hand lever.
- Excmach manual stacker is available in double tone safety color scheme with durable powder coat paint and special chrome plating on pipe.
- The high efficiency cast-pump jack has a one year manufacturer’s limited warranty.
- Heavy duty iron saddle wheels gives high durability of hand stacker during up/dn movement.
- The handle automatically returns to vertical upon release.
- Structural made by heavy duty MS steel and SS pipe.
- Manual stacker can be raised up to 1500mm off the ground as per customer requirement.
- Its Reduce time lost to personnel injuries and help increase your facility’s productivity.
- We provides stackers 500 Kg /1000 Kg/ 1500 Kg / 2000 Kg.
- Easy use by all operators. Regular handle discharges the load.
- Extremely small turning radius grants it to be operated in the more narrow space.
- We provide fixed fork and movable fork as per customer requirement.

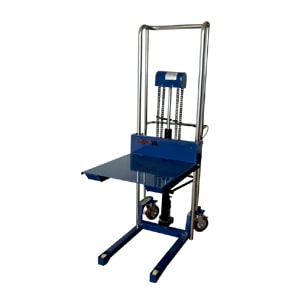

| MANUAL STACKER – PIPE (SPECIFICATION) | ||
| Discription | Unit | EMS 0514 |
| Capacity | Kg | UPTO 500 |
| Min. fork Height (F.Top) | mm | 85 -90 |
| Max. Lift Height | mm | 1400 |
| Mast Height | mm | 1750 |
| Length of Fork | mm | 750 |
| Max. fork Width | mm | 570 |
