Excmach

Our roll handlers is manufactured using quality assured components that are procured from the certified vendors of the market. Our quality experts strictly test each machine and check all parameters to ensure its 100% safe and work perfectly. This equipment is trail and tested more than 1000 cycles in our factory. We designed and manufactured roll pallets, roll lifters and attachments to meet customer specific requirement. We have range of up to 1500 Kg capacity with lifting height up to 1600 mm.

Feature:

Most standard and popular model with capacity 1000/1500 kgs.

Hand brake / drive hand pallet truck
Easy 3 position control handle– Raise, Lower, Neutral.
Structural heavy duty steel construction.
Powder coated structure and Integrated welded pump.
Fork lowering speed is controllable, operated by hand control.
Polyurethane wheels fitted as standard complete with break.
Its Reduce time lost to personnel injuries and help increase your facility’s productivity.

Wheels: Nylon wheel, Rubber wheel, Polyurethane wheel, Steel wheel

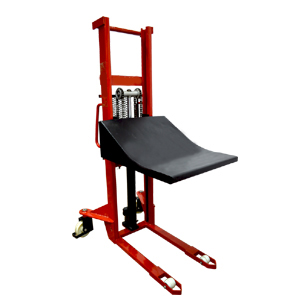

MANUAL ROLL HANDLER (HORIZONTAL TYPE) – SPECIFICATION
Description	Unit	EMRH- 1016H	EMRH- 1516H
Max Capacity*	Kg	1000	1500
Overall Dimensions (LXWXH)	mm	1850 x 950 x 2050
Carrier Length	mm	750
Carrier Width	mm	700
Min. Height	mm	100
Max. Lift Height	mm	1600
Load Wheel (Nylon)	mm	ø80 x 70
Steering Wheel (Nylon)	mm	ø180 x 50
Structure	Std.	Mild Steel
Turning Radius	mm	~1350
Overall Weight	Kg	~185	~195

11-MANUAL ROLL HANDLER

ROLL HANDLER HORIZONTAL
