Feature:
- Most standard and popular model with capacity 1000/1500 kgs in light duty.
- Hand brake / drive hand pallet truck
- Easy 3 position control handle– Raise, Lower, Neutral.
- Power coated structure after shot blasting process.
- Ergonomic powder coated handle
- Fork speed is controllable, operated by hand control and foot pedal.
- Integrated casting pump & welded pump.
- Heavy duty ball bearings for lower maintenance.
- We provide customized products as per client’s requirements.
Wheels: Nylon wheel, Rubber wheel, Polyurethane wheel, Steel wheel

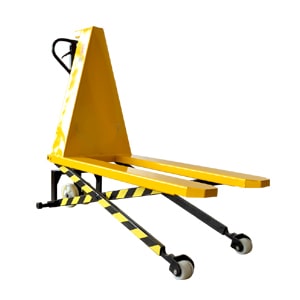

| HYDRAULIC SCISSOR PALLET TRUCK- SPECIFICATION | |||||
| ITEM | UNIT | EMPT 1008- 550N | EMPT 1008- 685N | EMPT 1010- 550N | EMPT 1010- 685N |
| Capacity | Kg | 1000 | |||
| Max. Fork Height | mm | 800 | 1000 | ||
| Min. Fork Height | mm | 90 | |||
| Fork Outside Distance | mm | 550 | 685 | 550 | 685 |
| Fork Length | mm | 1150 | 1220 | ||
| Fork Width | mm | 150 | |||
| Load Wheel Size | mm | ø80 x 70 | |||
| Steering Wheel | mm | ø180 x 50 | |||
| Pump & Handle | Std. | Welded Pump | |||
| Structure | Std. | MS Powder Coated | |||
| Material of Wheel | Std. | Nylon / PU | |||
| Gross Weight | Kg | ~ 140 | ~ 165 | ~ 155 | ~ 175 |
