Feature:

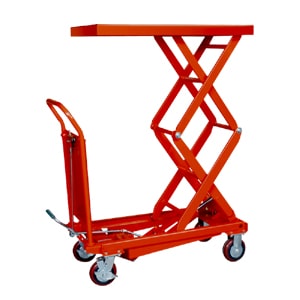

- Scissor table for use as a feeding table on assembly line.
- Structural heavy duty steel construction and power coated.
- Easy action foot operated hydraulic lift for raising table top to desired level.
- Over load by-pass value protects operator and pump and excellent hydraulic pump unit for low maintenance.
- Heavy duty steel construction with epoxy powder coated finish to give greaterant-corrosion resistance.
- High lift portable scissor table with 300 and 350 kg Capacity.
- Polyurethane wheels fitted as standard complete with break.
- Our Portable Scissor Lift Tables are perfect for all industries, warehouse, or any industrial arena where height is needed.
- Its Reduce time lost to personnel injuries and help increase your facility’s productivity.
Wheels: Nylon wheel, Polyurethane wheel
| Mobile Manual scissor lift – Specification | ||||
| Discription | Unit | EMPMS 350S | EMPMS 250D | EMPMS 500D |
| Capacity | kg | 350 | 250 | 500 |
| Min. height of table | mm / Inch | 300 / 12 | 400 / 16 | |
| Max. height of table | mm / Inch | 900 / 35 | 1450 / 56 | 1500 / 60 |
| Platform size of table | mm / Inch | 900 x 650 / 35 x 25 | ||
| Foot pedal cycles to reach max.height | Nos. | 25 – 28 | ||
| Wheels (Heavy duty PU wheels) | Nos. | 4 Nos. with double ball bearing | ||
| Hydraulic Unit | A foot operated hyd. pump | |||
| Handle height from ground | mm / Inch | 950 / 37 | ||
| Structure | Type | Heavy duty M.S. Sheet | ||
| Net.Weight | kg | 75 | 96 | 120 |
