Feature:
- Easy 3 position control handle– Raise, Lower, Neutral.

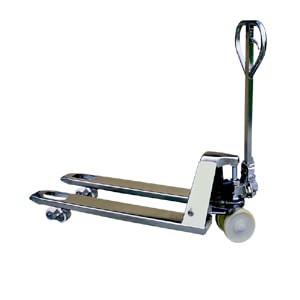

- Stainless steel hydraulic pump pallet with 2000 kg loading capacity.
- The high efficiency ss-pump jack has a two year manufacturer warranty.
- Nylon & Polyurethane wheels deliver superior durability.
- All parts are stainless including hydraulic pump, fork frame, handle, push rod, bearing, pin and bolt, etc.
- Use in meat and other food industries, dairy, canning and areas where corrosive acids and saline solutions are used.
- Fully sealed machined SS-304 pump with safety overload & bypass system.
- Fork lowering speed is controllable, operated by hand control and foot pedal.
Wheels: Nylon wheel, Rubber wheel, Polyurethane wheel, Steel wheel
| STAINLESS STEEL HYDRAULIC HAND PALLET TRUCK- SPECIFICATION | |||
| DESCRIPTION | UNIT | EMPT 2.5T – 550N/P SS | EMPT 2.5T – 685N/P SS |
| Capacity | Kg | Up to 2500 | |
| Overall dimensions | mm | 1550 X 550 X 1180 | 1620 X 685 X 1180 |
| Min. Fork Height | mm | 85 | |
| Max. Fork Height | mm | 190 – 200 | |
| Max. Lifting Height | mm | ≥110 | |
| Fork Outside Distance | mm | 550 | 685 |
| Fork Length | mm | 1150 | 1220 |
| Fork Width | mm | 150 | |
| Load Roller Double Wheel | mm | ø80 x 70 | |
| Steering Wheel | mm | ø180 x 50 | |
| Fork Thickness | mm | 3 | |
| Pump | Std | Hard Chrome Plated / SS | |
| Handle | Std | S.S.304 | |
| Structure | Std | S.S.304 | |
| Net Weight | Kg | 65/68 | 68/71 |
| Material of Wheel | Std | Nylon / Polyurethane | |
