Feature:
Most standard and popular model with capacity 300/350 kgs.
- it’s easy for loading and unloading of drums.
- Low cost and maximum durability its best feature.
- Structural light weight steel construction which help to easy manual movement.
- Powder coated structure.
- No use of hydraulic pumps provide 100% maintenance free trolley.
- Trolley 5 models provide a wide variety of drum handling.
- Its Reduce time lost to personnel injuries and help increase your facility’s productivity.
- We provides handler 300 and 350 kg Capacity.
Wheels: Nylon wheel, Rubber wheel, Polyurethane wheel, Pneumatic wheel

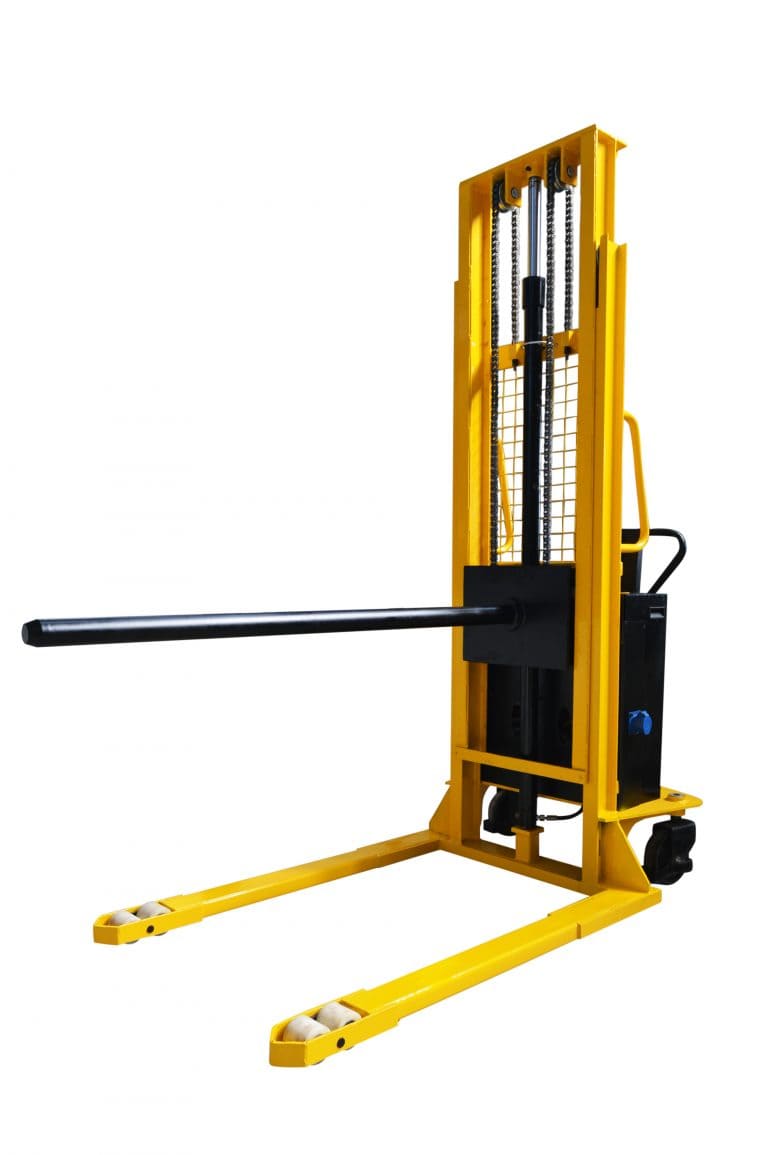

| SEMI ELECTRIC ROLL HANDLER – ROD TYPE | ||||
| TYPE | UNIT | EMERH 1016R | EMERH 1030R | |
| Maximum load Capacity | Kg | 700 | ||
| Mast Height | mm | 2050 | ||
| Overall Dimensions (LxWxH) | mm | 2000 x 950 x 2150 | ||
| Min. Boom Height | mm | 250 | ||
| Max. Boom Height | mm | 1600 | 3000 | |
| Length of Solid Rod | mm | 1250 / 1500 | ||
| Seamless Boom Diameter | mm | 60 / 65 | ||
| Load Center | mm | 550 | ||
| Turning Radius | mm | 1350 | ||
| Load Rollers | mm | 80×70 / 180×50 | ||
| Steering Wheel | mm | 180×50 | ||
| Lifting Motor Power | Type | 1.5-1.6 | ||
| Battery Voltage / Capacity | V/Ah | 12/100 | 12/120 | |
| Battery Type | Industrial | Excide / Imported | ||
| Battery Indicator | Type | Digital / Analog | ||
| Battery Weight | Kg | 20 – 25 | 25 – 30 | |
| Gross Weight | Kg | 245 – 255 | 265 – 275 | |
