Excmach

Excmach Equipments having years of experience providing material handling solutions for the different industry and provide roll handling Equipments. Excmach Equipment, meets all roll handling needs of the paper, textile, sheet metal and other industries. Our roll handlers is manufactured using quality assured components that are procured from the certified vendors of the market.

Our quality experts strictly test each machine and check all parameters to ensure its 100% safe and work perfectly.This equipment is trail and tested more than 1000 cycles in our factory. We designed and manufactured roll pallets, roll lifters and attachments to meet customer specific requirement

Feature:

Most standard and popular model with capacity 300/350 kgs.

it’s easy for loading and unloading of drums.
Low cost and maximum durability its best feature.
Structural light weight steel construction which help to easy manual movement.
Powder coated structure.
No use of hydraulic pumps provide 100% maintenance free trolley.
Trolley 5 models provide a wide variety of drum handling.
Its Reduce time lost to personnel injuries and help increase your facility’s productivity.
We provides handler 300 and 350 kg Capacity.

Wheels: Nylon wheel, Rubber wheel, Polyurethane wheel, Pneumatic wheel

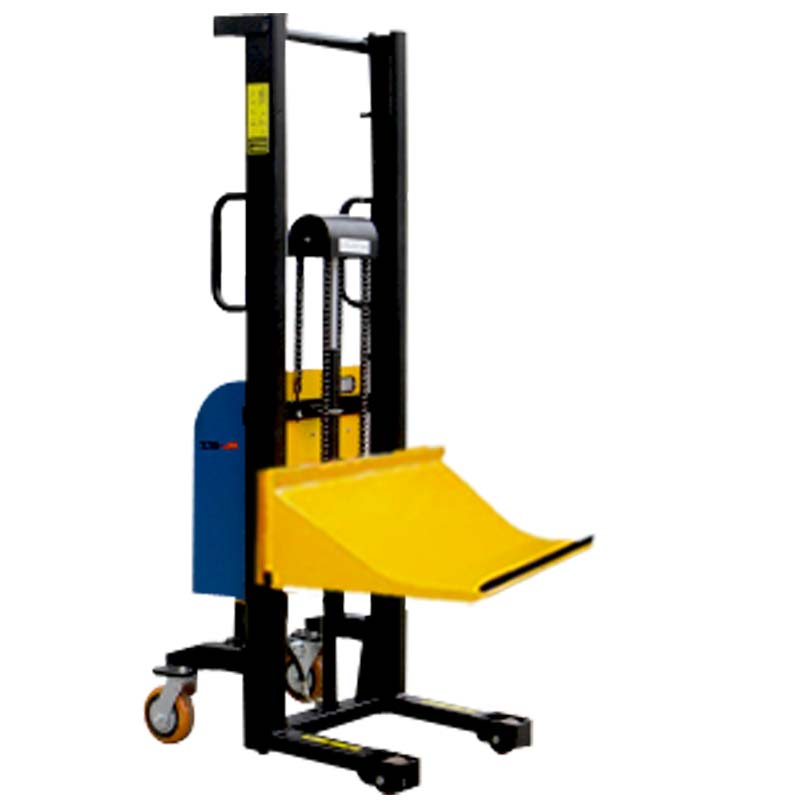

SEMI ELECTRIC ROLL HANDLER – HORIZONTAL
TYPE	UNIT	EMERH 1016H	EMERH 1516H
Max Capacity*	Kg	1000	1500
Overall Dimensions (LXWXH)	mm	1850 x 950 x 2050
Carrier Length	mm	750
Carrier Width	mm	700
Min. Height	mm	100
Max. Lift Height	mm	1600
Load Center	mm	550
Turning Radius	mm	1350
Load Rollers	mm	80×70
Steering Wheel	mm	180×50
Lifting Motor Power		1.5-1.6
Battery Voltage / Capacity	V/Ah	12/100	12/120
Battery Type	Industrial	Excide / Imported
Battery Indicator		Digital / Analog
Battery Weight	Kg	20 – 25	25 – 30
Gross Weight	Kg	245 – 255	265 – 275

SEMI ELECTRIC ROLL HANDLER HORIZONTAL
